NEFF I25CBS8W0B N70 CEILING COOKER HOOD

€2.149,00

General information

Type of appliance width

120 cm

Color body

White

Installation typology

Island

Operating Mode

Convertible

Total power of the motors

160 W

Type of control setting devices

LED

Number of speed settings

3-stage + 2 intensive

Maximum output air extraction

459 m³/h

Boost position air extraction

798 m³/h

Sound power at max. speed (2010/30/EC)

56 dB

Sound power boost (2010/30/EC)

68 dB

Maximum output recirculating air

422 m³/h

Boost position output recirculating

565.0 m³/h

Sound power at max. speed (recirculation)

63 dB

Sound power boost (recirculation)

69 dB

Grease filter material

Washable stainless steel

Energy efficiency rating

A

Total annual energy consumption

34.0 kWh/annum



Height without worktop / build under

300-300/300-300 mm

Appliance Width

1,200 mm

Depth

500 mm

Minimum distance above an electric hob

650 mm

Minimum distance above a gas hob

650 mm

Diameter of air outlet

150 mm

No-return airflow flap

No

Length electrical supply cord

130 cm

Net weight

33.7 kg

Appliance height exhaust air max

300 mm

Appliance height exhaust air min

300 mm

Appliance height recirculating max

300 mm

Appliance height recirculating min

300 mm

Minimum width for installation

1,188 mm

Maximum width for installation

1,188 mm

Depth for installation

487 mm
















climatecontrol sensor



Yes

Control your hood with your Home Connect hob



Yes

Eco silence drive



Yes

Silence

Yes

Boost position

Yes

Delay Shut off modes

10 min

Remote control

Yes




Number of lights

4

Total luminance

772 lux

Color temperature

Neutral (3.500 K)

Illumination type softlight

Yes

Average illumination of the lighting system on the cooking surface E_middle(2009/125/EC)

772 lux

Color temperature control via smartphone with Home Connect

No

emotionLight Pro



No


Connectivity

Home Connect

Yes

Home Connect Features

iService Remote, Remote Monitoring and Control

Power consumption standby/display off

0.5 W


Key performance features:

Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)

Extraction rate according to EN 61591 ø 15 cm:
max. Normal use458m³/h
Intensive798 m³/h

Noise max. Normal Level: 56 dB*


Special features

Climate Control Sensor

Hob-Hood control (with Wi-Fi enabled hob)

Remote Monitoring and Control for connected home appliances and operation via smartphone or tablet (only in countries where Home Connect service is available)

The Home Connect functionality can be extended by integrating numerous applications from external cooperation partners (partnerships)

Voice Control enabled via popular voice assistants (only in countries where this service is available)

Interval function: available via Home Connect

Silence function: available via Home Connect

Fully automatic hood


Features

3 power levels and 2 intensive settings

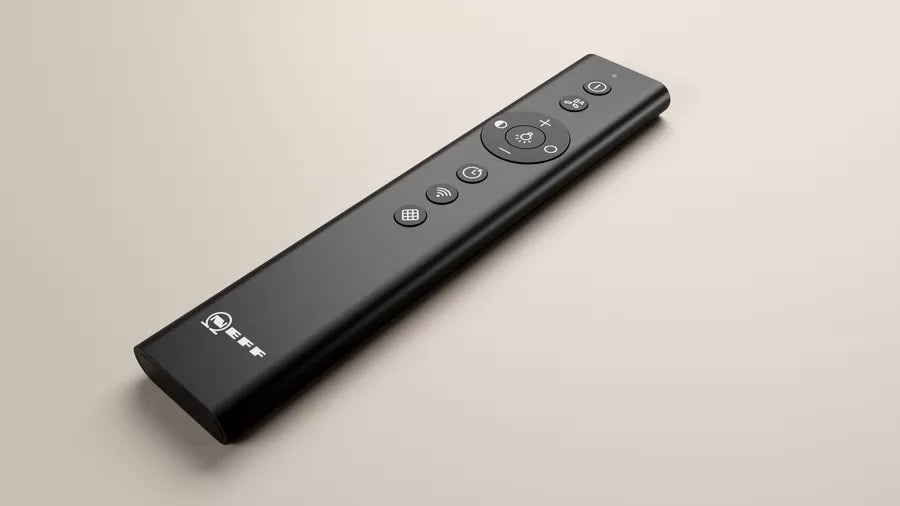

Infrared remote control

LED display

Twin channel high performance fan motor

Efficient BLDC technology

Stylish LED lighting behind glass

4 x 3W LED lights

softLight with dimmer function

Interval operation

Automatic after running (10 minutes)

Automatic intensive revert (6mins)

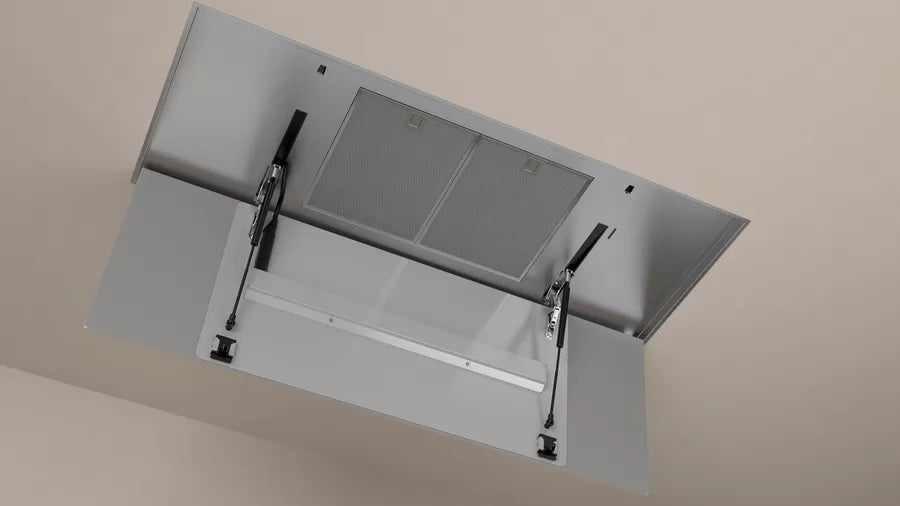

2 metal grease filter cassettes

Saturation indicator for metal and charcoal filter

easy to clean Inner frame

Rim ventilation


Design

For ceiling mounted installation

Rotatable motor: possible to position the air outlet on all four sides

Filter cover glass, metal grease filter

Electronic controls


Performance/technical information

Suitable for ducted extraction and recirculation

For recirculated extraction CleanAir recirculating kit (accessory) needed

Extraction rate according to EN 61591 max. 458 m³/h

Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 56 dB(A) re 1 pW

Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use:56dB(A) re 1 pW
Intensive:68 dB(A) re 1 pW

Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 56 dB (A) re 1pW

With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
Extraction rate in recirculation mode: Max. normal use:422m³/h
Intensive:565m³/h
Noise level in recirculation mode with Clean Air Plus odor filter : Max. normal use:63dB(A) re 1 pW
Intensive:69dB(A) re 1 pW

Power rating: 174 W

Light Intensity: 772 lux

Colour Temperature: 3500 K

Electrical cable length 1.3 m

Diameter pipe Ø 150 mm (Ø 150 mm enclosed)

Dimensions exhaust air (HxWxD): 300-300 x 1200 x 500 mm

Blower Efficiency Class: A*

Lighting Efficiency Class: A*

Grease Filtering Efficiency Class: E*

Average Energy Consumption: 34 kWh/year*


Optional accessories

Recirculating kit Z50XXP0X0
